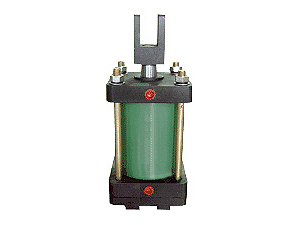

| ▼ 气缸系列 |
|
气缸技术参数：
| 缸径 |
d |
KK
|
AM |
EE |
ΦB |
WH |
VD |
L |
ΦDD |
TG |
E |
| 32 |
12 |
M10×1.25 |
22 |
G1/8" |
30 |
24 |
15 |
98 |
M6 |
35 |
50 |
| 40 |
16 |
M12×1.25 |
24 |
G1/4" |
30 |
30 |
23 |
105 |
M6 |
42 |
55 |
| 50 |
20 |
M16×1.5 |
32 |
G1/4" |
35 |
35 |
25 |
110 |
M6 |
48 |
65 |
| 63 |
20 |
M16×1.5 |
32 |
G3/8" |
40 |
35 |
25 |
125 |
M8 |
58 |
80 |
| 80 |
25 |
M20×1.5 |
40 |
G1/2" |
50 |
46 |
30 |
128 |
M10 |
75 |
100 |
| 100 |
25 |
M20×1.5 |
40 |
G1/2" |
50 |
51 |
35 |
138 |
M10 |
90 |
120 |
| 125 |
32 |
M27×2 |
54 |
G1/2" |
60 |
61 |
44 |
168 |
M12 |
110 |
140 |
| 160 |
45 |
M36×2 |
72 |
G3/4" |
80 |
80 |
50 |
180 |
M16 |
142 |
180 |
| 200 |
45 |
M36×2 |
72 |
G3/4" |
80 |
90 |
55 |
190 |
M20 |
180 |
220 |
| 250 |
50 |
M42×2 |
84 |
G1" |
90 |
105 |
70 |
200 |
M20 |
215 |
280 |
| 320 |
63 |
M48×2 |
96 |
G1" |
105 |
120 |
75 |
225 |
M24 |
205 |
350 |
|
|
|
|
|
|
